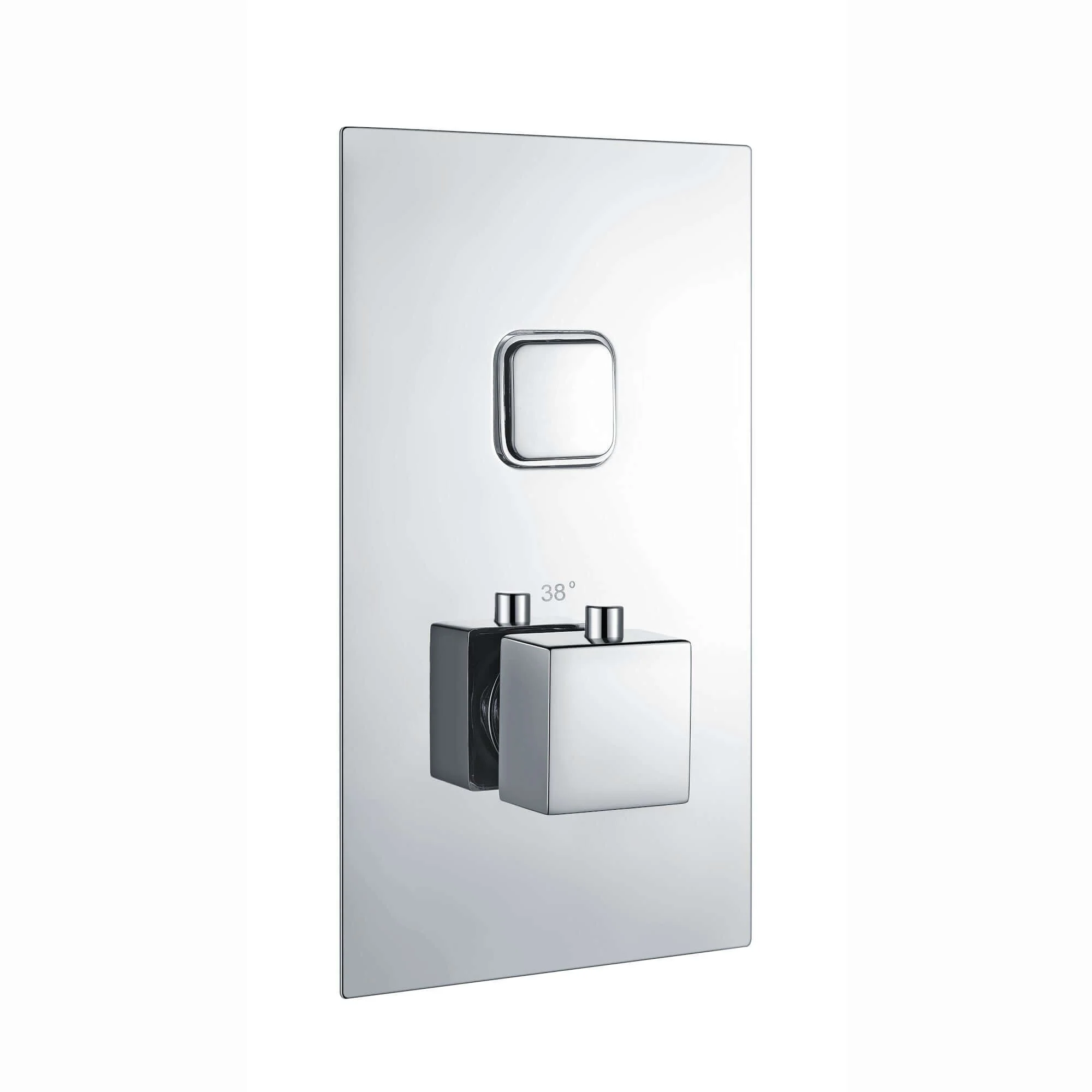

Spello square push button concealed thermostatic shower valve with 1 outlet - chrome
PRODUCT DETAILS
- Height: 215mm
- Width: 120mm
- Depth: 123mm

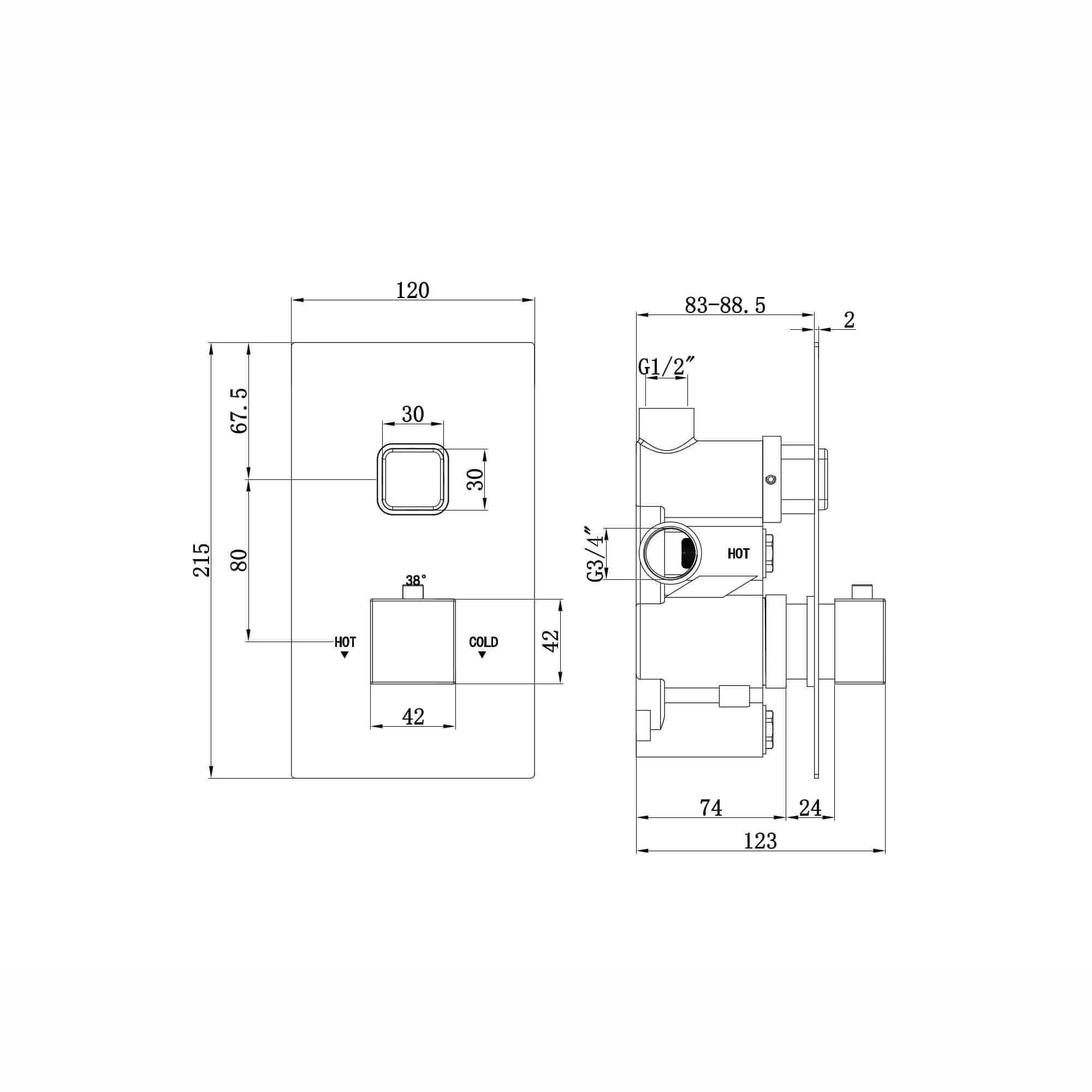

- For more sizes please see technical drawing
- Style: Modern
- Main Material: Brass
- Finish: Chrome
- Rectangular Faceplate
- Valve Handles: Square
- Select push button On/Off control for 1 outlet
- Instant start/stop activation
- Bottom knob controls temperature
- Thermostatically controlled
- Built-in anti-scald device with override function
- For use with 1 outlet
- Easy to use
WORKING REQUIREMENTS
Suitable for all plumbing systems. Minimum water pressure required - 0.5 bar, though we recommend min. of 1.0 bar for best performance. Please note: shower valve will not work efficiently on a gravity fed tank system, unless a negative or universal pump is installed. Positive pumps will not work.
FLOW RATES
- 0.5 bar - 6 L/M
- 1.0 bar - 11 L/M
- 2.0 bar - 16.2 L/M
- 3.0 bar - 20 L/M
- 4.0 bar - 23 L/M
- 5.0 bar - 25.8 L/M
All measurements are approximate
Product images for illustration only
Guarantee: 10 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges; moving parts and finishes).
