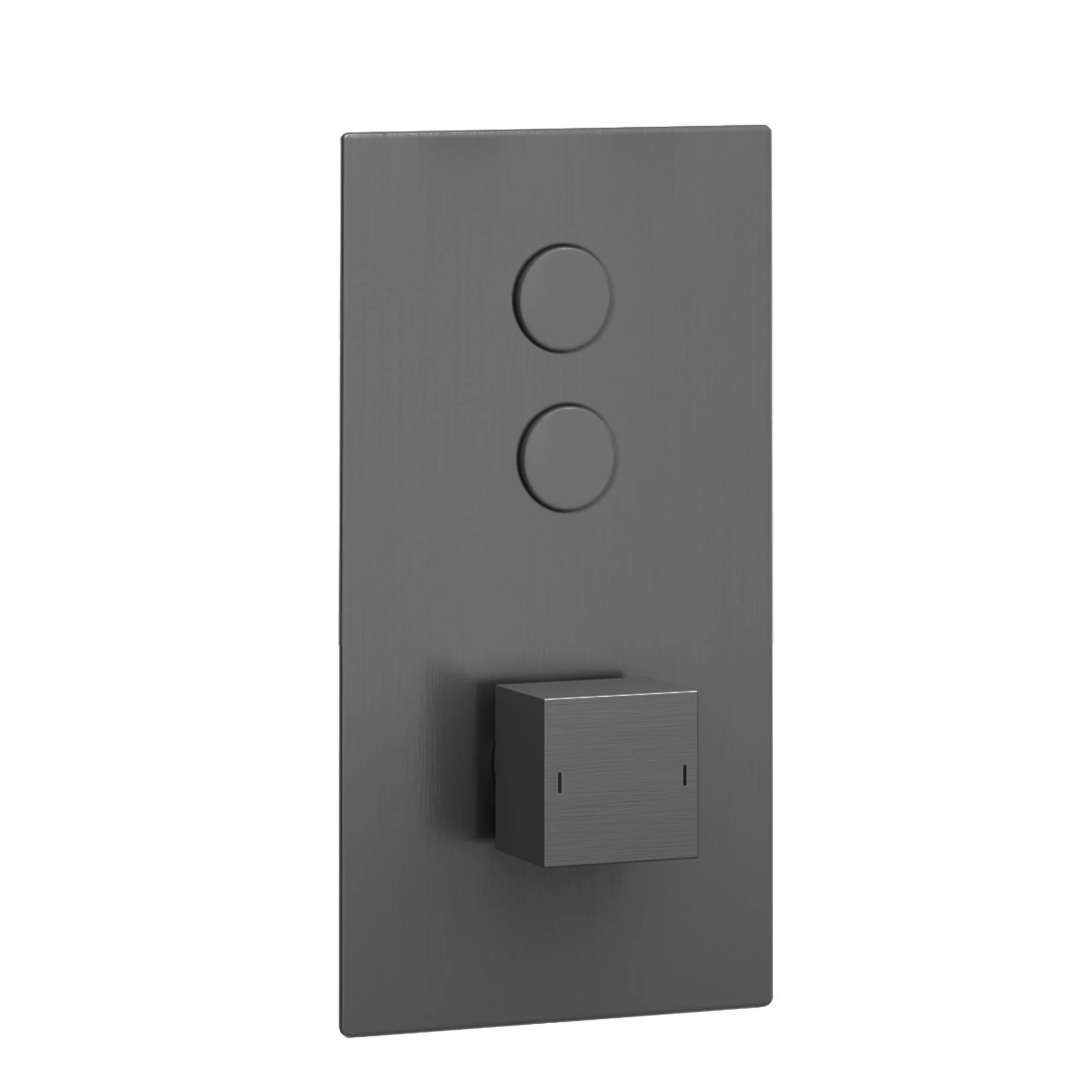

Spello square push button concealed thermostatic shower valve with 2 outlets - gunmetal grey

SPELLO TWIN MODERN SQUARE PUSH BUTTON SHOWER VALVE WITH 2 OUTLETS

This concealed thermostatic shower mixer is engineered for easy use, installation and maintenance. It benefits from a premium quality valve comprising solid brass throughout. Designed to be used with 2 outlets i.e. rain shower + handheld shower + massagers or bath filler, etc. - any combination of 2 outlets.

PRODUCT DETAILS

• Height: 238mm
• Width: 120mm
• Depth: 123mm

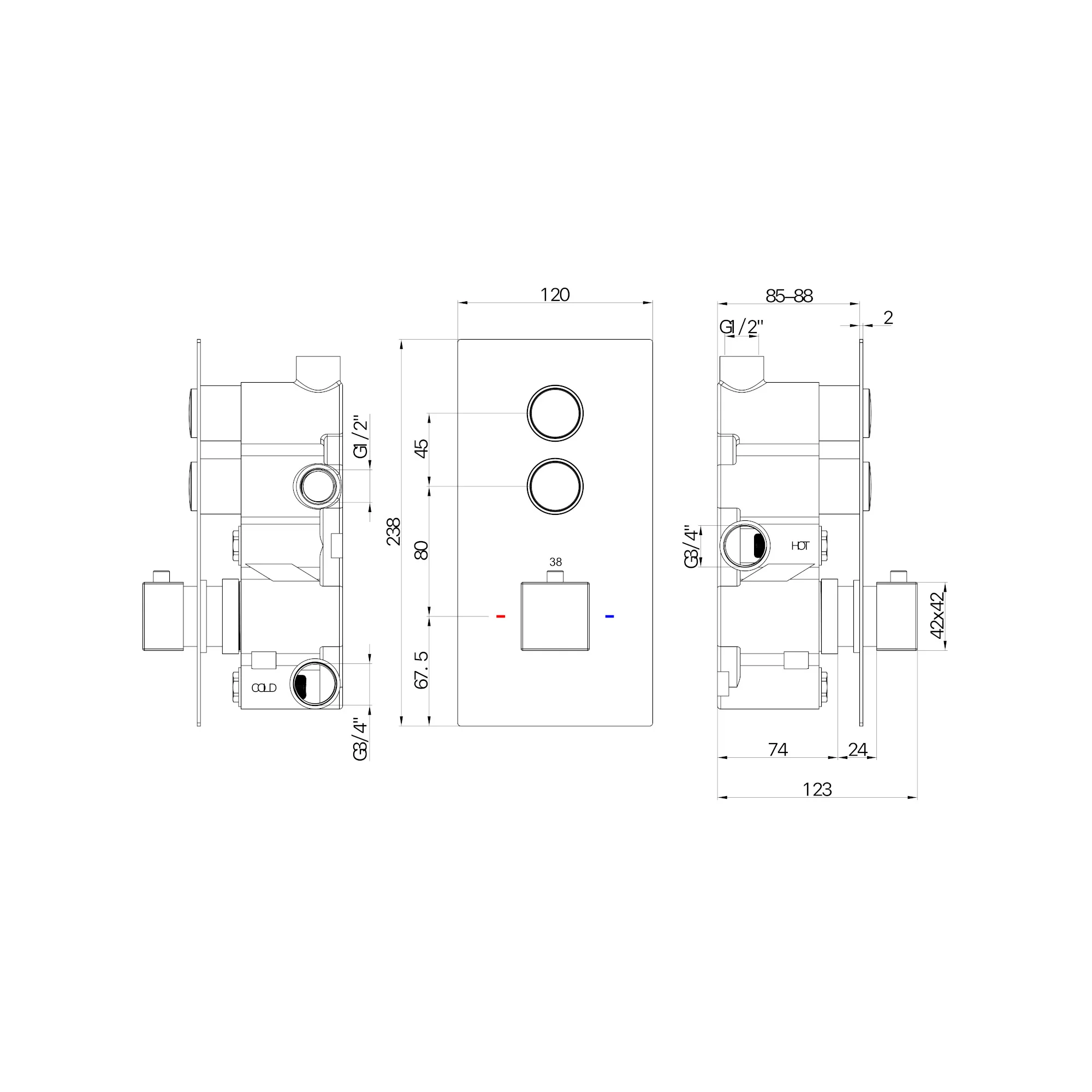

• For more sizes please see technical drawing
• Style: Modern
• Main Material: Brass
• Finish: Gunmetal grey
• Rectangular Faceplate
• Valve Handles: Square
• Select push button On/Off control for 2 outlets
• Instant start/stop activation
• Bottom knob controls temperature
• Thermostatically controlled
• Built-in anti-scald device with override function
• For use with 2 outlets
• Easy to use

WORKING REQUIREMENTS

Suitable for all plumbing systems. Minimum water pressure required - 0.5 bar, though we recommend min. of 1.0 bar for best performance. Please note: shower valve will not work efficiently on a gravity fed tank system, unless a negative or universal pump is installed. Positive pumps will not work.

FLOW RATES

• 0.5 bar - 6 L/M
• 1.0 bar - 11 L/M
• 2.0 bar - 16.2 L/M
• 3.0 bar - 20 L/M
• 4.0 bar - 23 L/M
• 5.0 bar - 25.8 L/M

All measurements are approximate

Product images for illustration only

Guarantee: 10 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges; moving parts and finishes).
