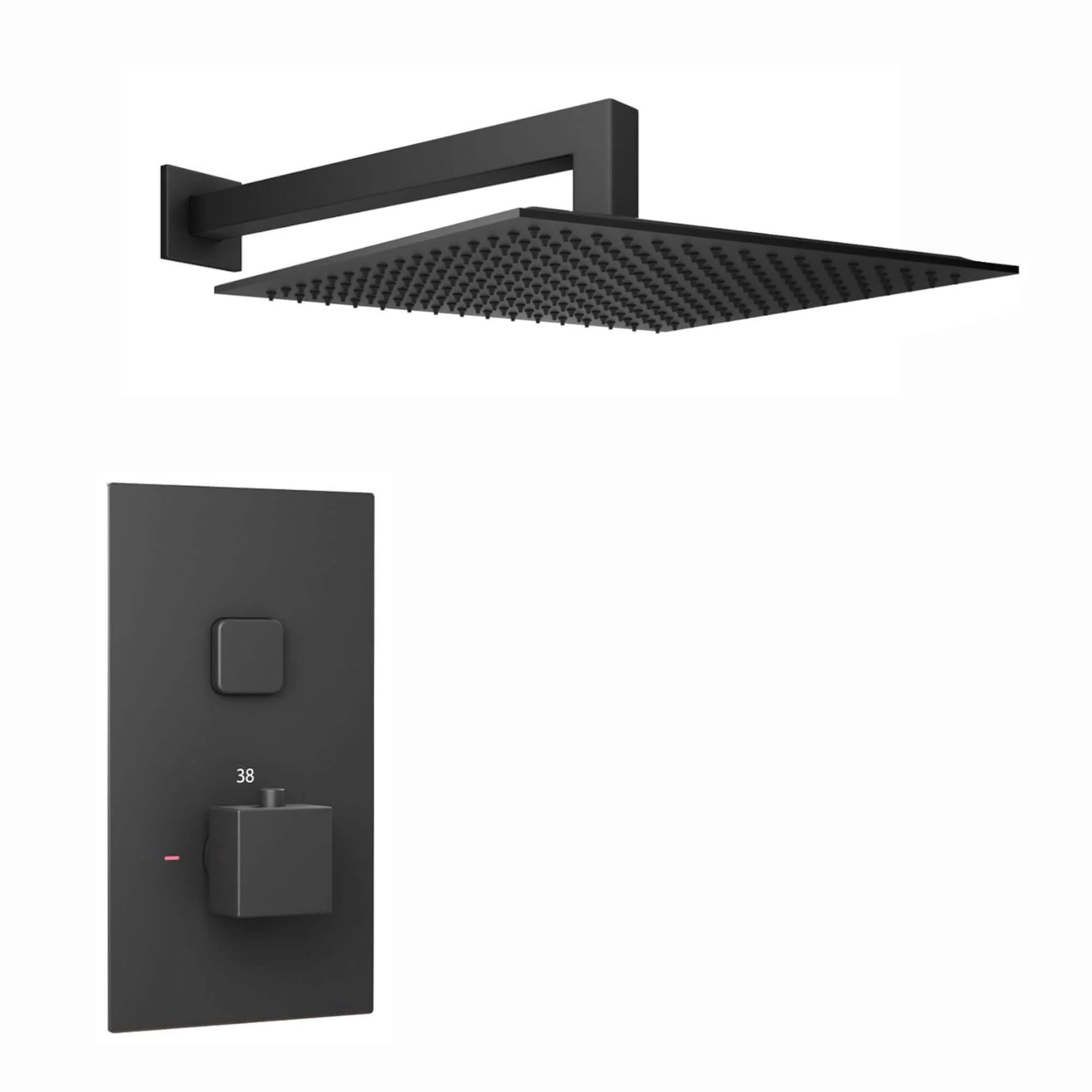

Spello Square Thermostatic Concealed Shower Set with Wall Mounted Shower Head - Black

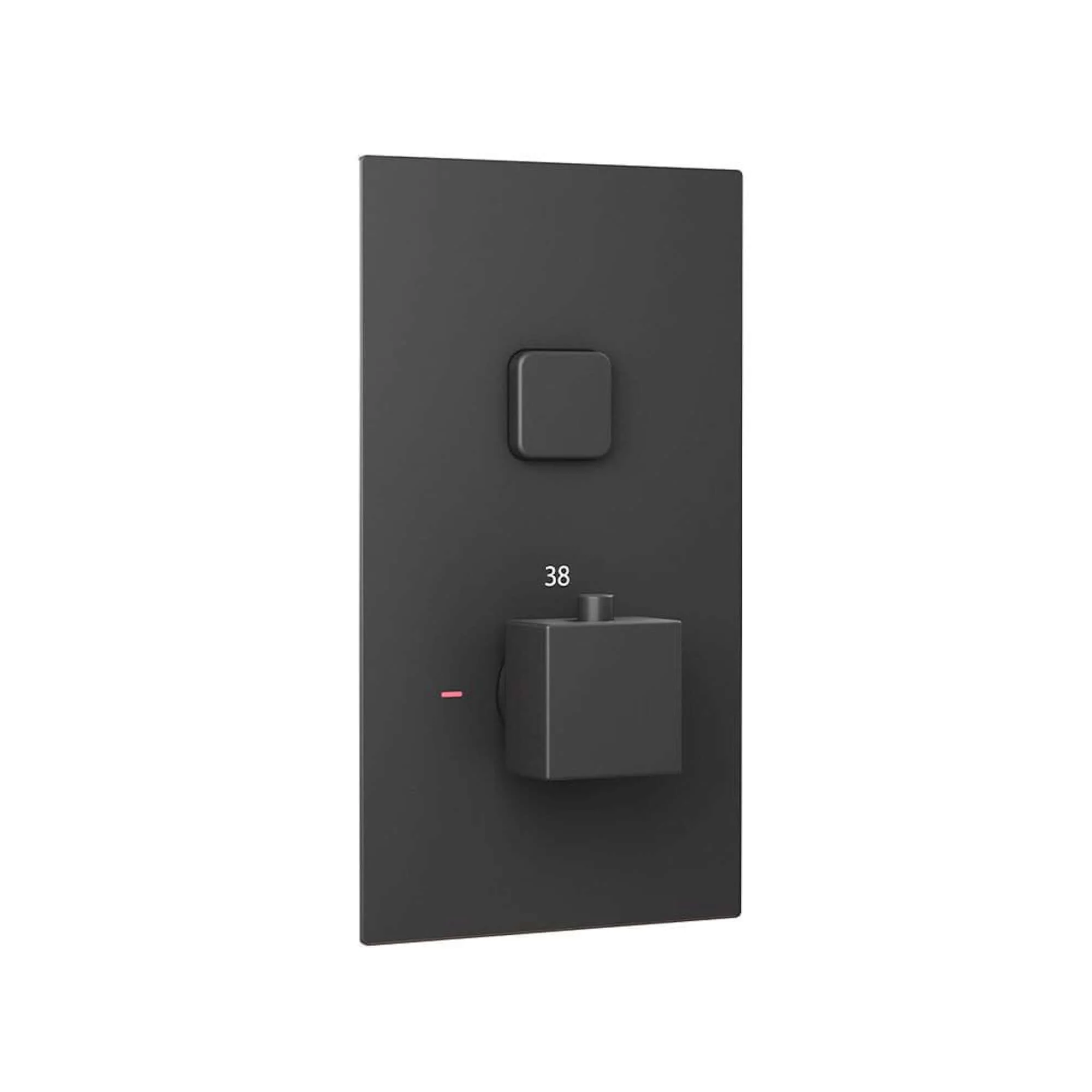

SPELLO CONCEALED PUSH BUTTON THERMOSTATIC SHOWER MIXER VALVE
Single cast body, high-grade brass is featured in this premium quality valve. It is designed in a way that if maintenance is required whole valve does not require re-plumbing. Built-in anti-scald device means no more fluctuating water temperatures while showering.
Suitable for all plumbing systems. Minimum water pressure required - 0.5 bar, though we recommend min. of 1.0 bar for best performance. Please note: shower valve will not work efficiently on a gravity fed tank system, unless a negative or universal pump is installed. Positive pumps will not work.
FLOW RATES
0.5 bar - 6 L/M
1.0 bar - 11 L/M
2.0 bar - 16.2 L/M
3.0 bar - 20 L/M
4.0 bar - 23 L/M
5.0 bar - 25.8 L/M
WHAT'S IN THE BOX?
Single cast body, high-grade brass is featured in this premium quality valve. It is designed in a way that if maintenance is required whole valve does not require re-plumbing. Built-in anti-scald device means no more fluctuating water temperatures while showering.
- 3/4" hot/cold inlets with built-in non-return valves to prevent backflow

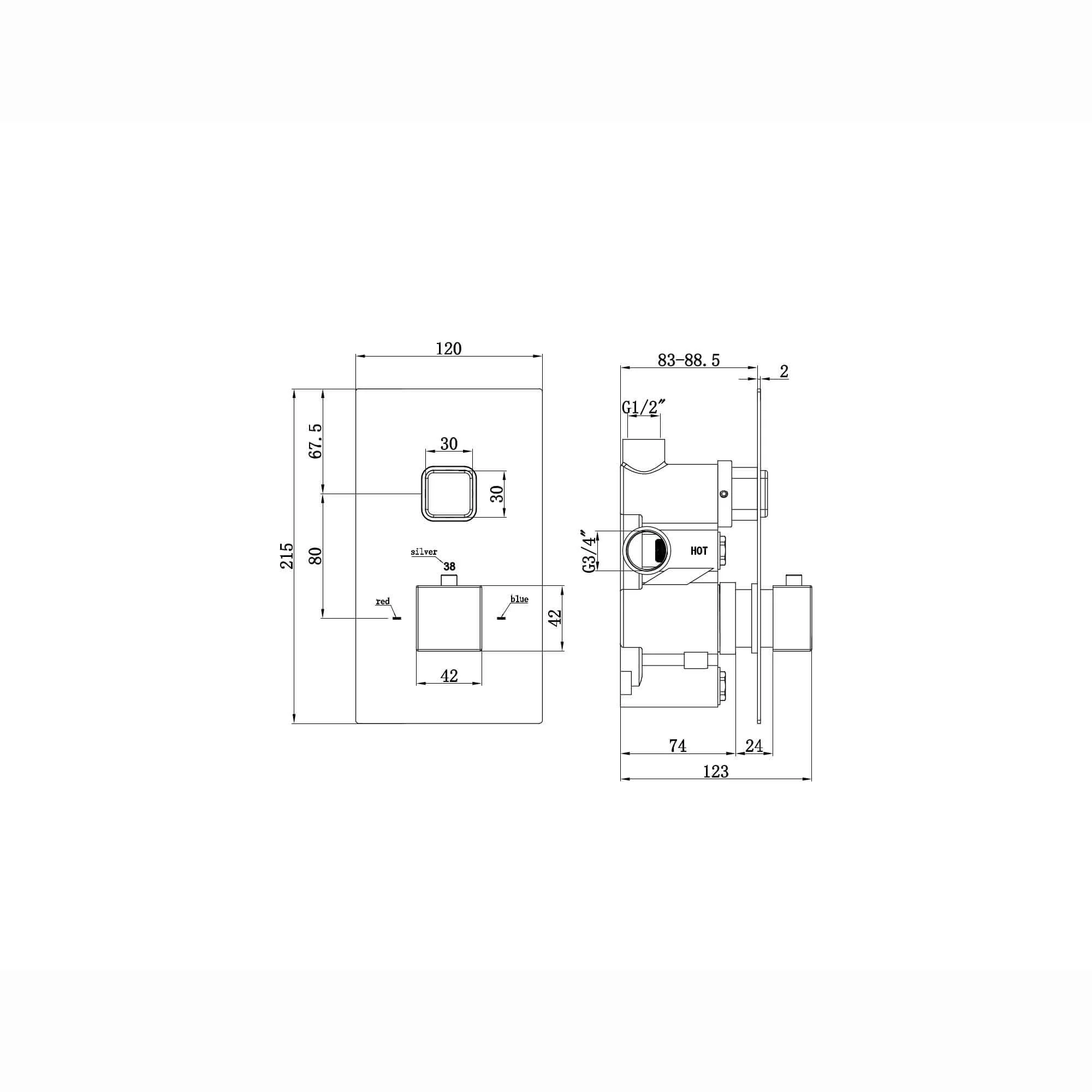

- For more dimensions please see technical drawing
- Push button 1: on/off for outlet 1
- Bottom dial: temperature control
- Connection size - 1/2"

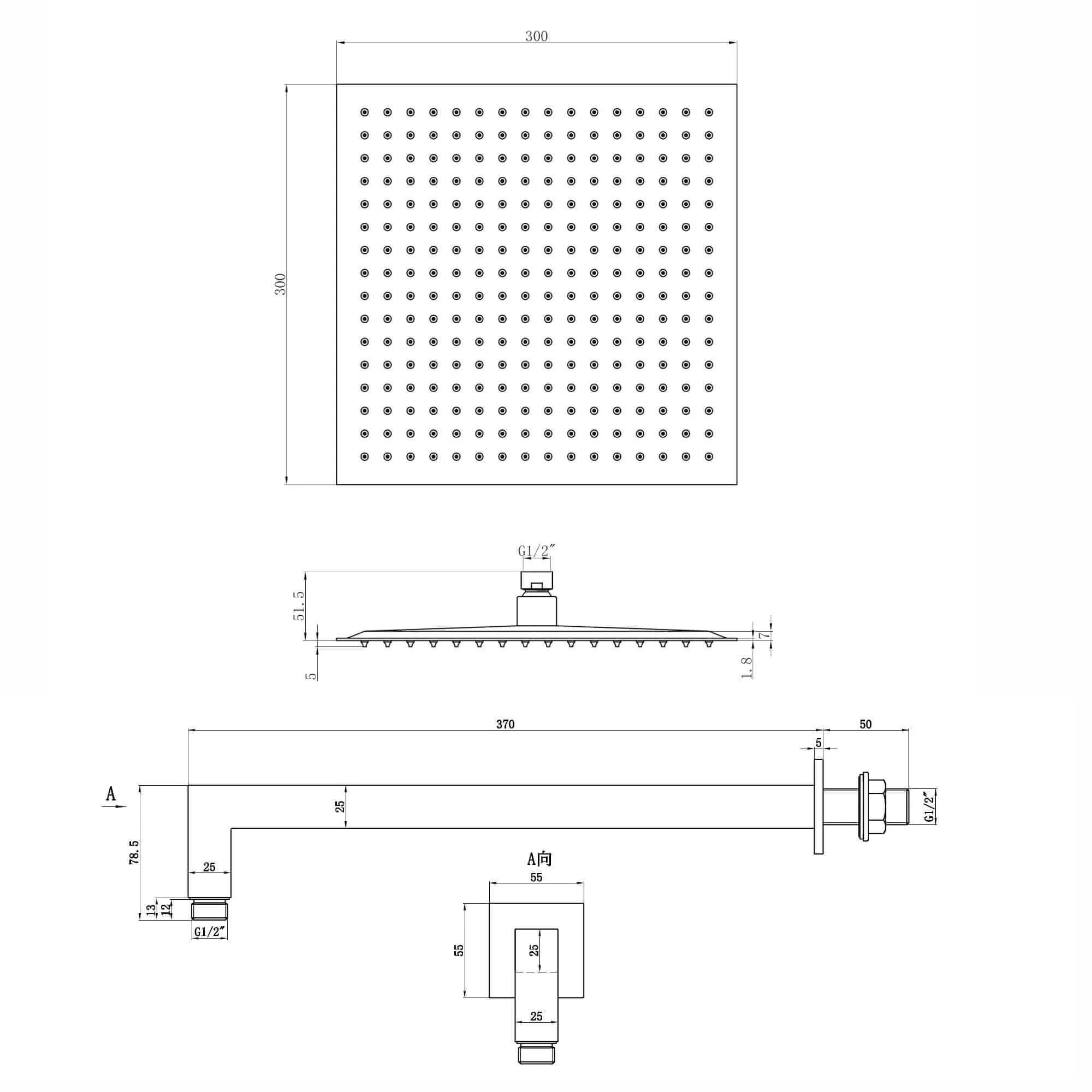

- Shower head size - 300 x 300mm
Suitable for all plumbing systems. Minimum water pressure required - 0.5 bar, though we recommend min. of 1.0 bar for best performance. Please note: shower valve will not work efficiently on a gravity fed tank system, unless a negative or universal pump is installed. Positive pumps will not work.
FLOW RATES
0.5 bar - 6 L/M
1.0 bar - 11 L/M
2.0 bar - 16.2 L/M
3.0 bar - 20 L/M
4.0 bar - 23 L/M
5.0 bar - 25.8 L/M
WHAT'S IN THE BOX?
- Thermostatic shower mixer valve x 1
- Shower head and arm x 1
$244.59
Spello Square Thermostatic Concealed Shower Set with Wall Mounted Shower Head - Black—
$244.59
More Images
Spello Square Thermostatic Concealed Shower Set with Wall Mounted Shower Head - Black
SPELLO CONCEALED PUSH BUTTON THERMOSTATIC SHOWER MIXER VALVE
Single cast body, high-grade brass is featured in this premium quality valve. It is designed in a way that if maintenance is required whole valve does not require re-plumbing. Built-in anti-scald device means no more fluctuating water temperatures while showering.
Suitable for all plumbing systems. Minimum water pressure required - 0.5 bar, though we recommend min. of 1.0 bar for best performance. Please note: shower valve will not work efficiently on a gravity fed tank system, unless a negative or universal pump is installed. Positive pumps will not work.
FLOW RATES
0.5 bar - 6 L/M
1.0 bar - 11 L/M
2.0 bar - 16.2 L/M
3.0 bar - 20 L/M
4.0 bar - 23 L/M
5.0 bar - 25.8 L/M
WHAT'S IN THE BOX?
Single cast body, high-grade brass is featured in this premium quality valve. It is designed in a way that if maintenance is required whole valve does not require re-plumbing. Built-in anti-scald device means no more fluctuating water temperatures while showering.
- 3/4" hot/cold inlets with built-in non-return valves to prevent backflow
- For more dimensions please see technical drawing
- Push button 1: on/off for outlet 1
- Bottom dial: temperature control
- Connection size - 1/2"
- Shower head size - 300 x 300mm
Suitable for all plumbing systems. Minimum water pressure required - 0.5 bar, though we recommend min. of 1.0 bar for best performance. Please note: shower valve will not work efficiently on a gravity fed tank system, unless a negative or universal pump is installed. Positive pumps will not work.
FLOW RATES
0.5 bar - 6 L/M
1.0 bar - 11 L/M
2.0 bar - 16.2 L/M
3.0 bar - 20 L/M
4.0 bar - 23 L/M
5.0 bar - 25.8 L/M
WHAT'S IN THE BOX?
- Thermostatic shower mixer valve x 1
- Shower head and arm x 1
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
SPELLO CONCEALED PUSH BUTTON THERMOSTATIC SHOWER MIXER VALVE
Single cast body, high-grade brass is featured in this premium quality valve. It is designed in a way that if maintenance is required whole valve does not require re-plumbing. Built-in anti-scald device means no more fluctuating water temperatures while showering.
Suitable for all plumbing systems. Minimum water pressure required - 0.5 bar, though we recommend min. of 1.0 bar for best performance. Please note: shower valve will not work efficiently on a gravity fed tank system, unless a negative or universal pump is installed. Positive pumps will not work.
FLOW RATES
0.5 bar - 6 L/M
1.0 bar - 11 L/M
2.0 bar - 16.2 L/M
3.0 bar - 20 L/M
4.0 bar - 23 L/M
5.0 bar - 25.8 L/M
WHAT'S IN THE BOX?
Single cast body, high-grade brass is featured in this premium quality valve. It is designed in a way that if maintenance is required whole valve does not require re-plumbing. Built-in anti-scald device means no more fluctuating water temperatures while showering.
- 3/4" hot/cold inlets with built-in non-return valves to prevent backflow
- For more dimensions please see technical drawing
- Push button 1: on/off for outlet 1
- Bottom dial: temperature control
- Connection size - 1/2"
- Shower head size - 300 x 300mm
Suitable for all plumbing systems. Minimum water pressure required - 0.5 bar, though we recommend min. of 1.0 bar for best performance. Please note: shower valve will not work efficiently on a gravity fed tank system, unless a negative or universal pump is installed. Positive pumps will not work.
FLOW RATES
0.5 bar - 6 L/M
1.0 bar - 11 L/M
2.0 bar - 16.2 L/M
3.0 bar - 20 L/M
4.0 bar - 23 L/M
5.0 bar - 25.8 L/M
WHAT'S IN THE BOX?
- Thermostatic shower mixer valve x 1
- Shower head and arm x 1
